U55-5R1A
$60,498.00
Price
1
Hours
The right equipment makes all the difference, and you’ll find that difference you’re searching for with the Kubota U55-5. Advanced hydraulics, outstanding dig and dump capability and a whopping 47.6 horsepower follow your every command, letting you get more done in a day’s work and start setting your sights on the next challenge.
**Price listed as Cash Price. Financing Options are available**
The U55-5 R1A specifications (Kubota U55-5 excavator) include a Kubota V2607-CR-E5 engine with 47.6 horsepower, a max dig depth of approximately 11 ft 11 in, and a digging radius of nearly 20 ft. It has an operating weight that ranges from 12,247 to 13,217 lbs depending on the configuration and a max travel speed of 3.0 mph. Other features include a tight tail swing design, an optional angle blade, and an improved cab with a 7-inch LCD color display.
Specifications:
- Engine Model: Kubota V2607-CR-E5
- Horsepower (gross): 47.6 HP
- Displacement: 159.6 cu. in.
- Max Dig Depth: 11 ft 11 in (3.63 m)
- Max Reach: 19 ft 11.4 in (6.08 m) @ ground level
- Dump Height: 13 ft 2 in (4.01 m)
- Bucket Breakout Force: 10,172 lbs
- Arm Breakout Force: 5,869 lbs
- Max Travel Speed: 3.0 mph (4.8 kph)
- Auxiliary Hydraulic Flow: 19.8 GPM (75 L/min)
- Operating Weight: 12,247 – 13,217 lbs (5,555 – 5,995 kg), depending on configuration
- Overall Length: 17 ft 1 in (5.43 m)
- Overall Height: 8 ft 4 in (2.55 m)
- Overall Width: 6 ft 5 in (1.96 m)
- Minimum Ground Clearance: 12.2 in (310 mm)
- Blade Width: 6 ft 5.2 in (1.96 m)
- Blade Height: 16.1 – 16.7 in (410 – 425 mm)
- Swing: Tight tail swing design
- Boom Swing Angle: 70° left / 55° right

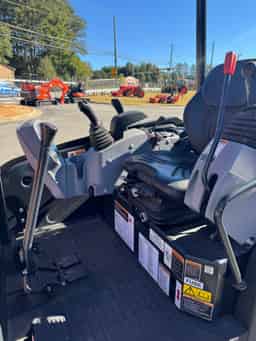

- Cab: Spacious with improved AC and a 7-inch LCD color display
- Blade: Optional hydraulic angle blade with a float function
- Lights: LED working lights on the cab and boom
- Controls: Two-pattern selection system (ISO/SAE)
- Auxiliary Hydraulics: Proportional flow control and a bi-directional switch for attachments like hydraulic thumbs
