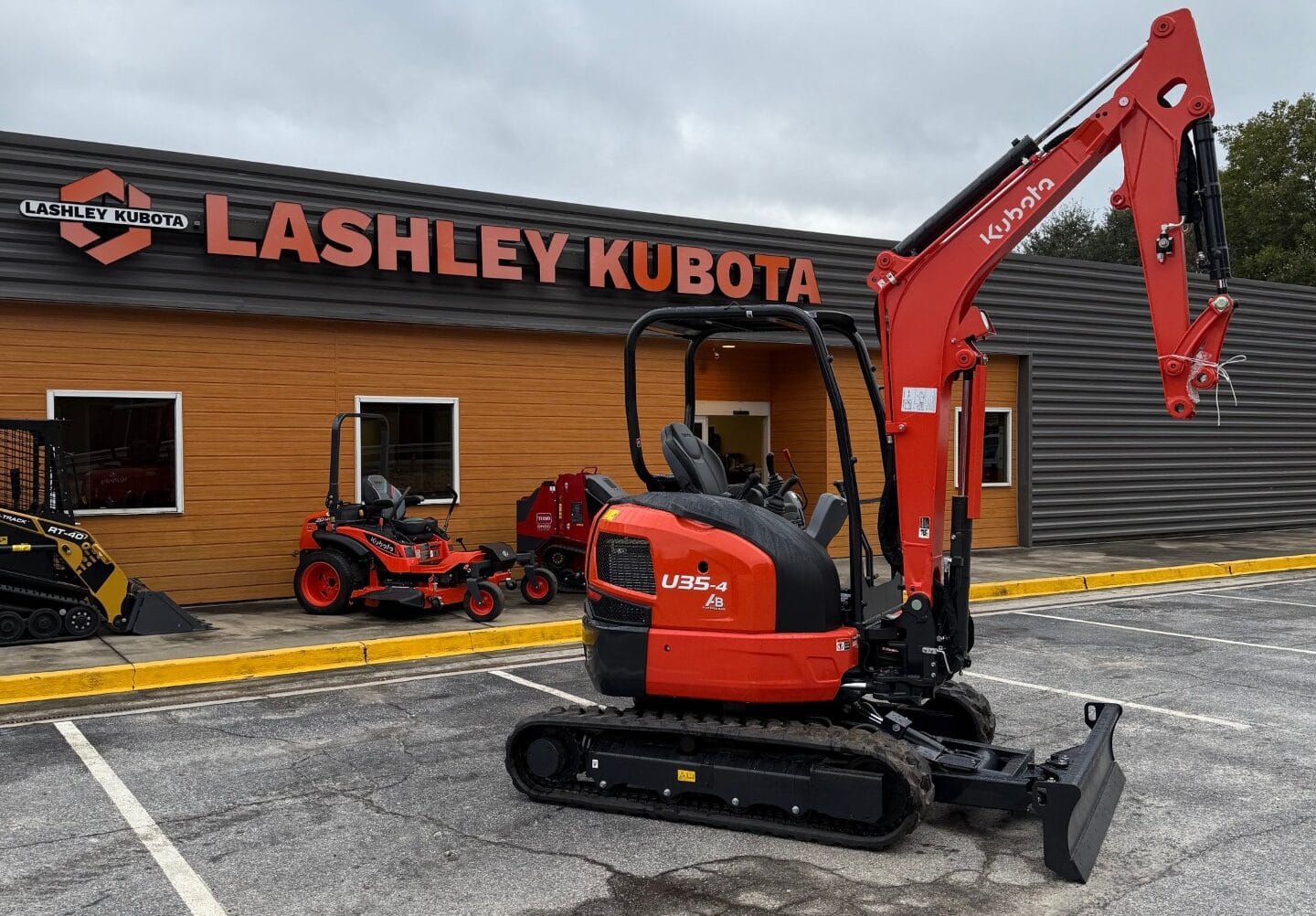

U35-4R1A

**Price listed as Cash Price. Financing Options are available**

With a wide range of attachments and 24.8 horsepower at its disposal, the Kubota U35-4 Compact Excavator is here to help you reach for the stars. Not only is the compact excavator built with extreme durability, the operator’s station is designed for the ultimate operator experience as well. Nimble enough for confined spaces and sturdy enough for variable terrain, your U35-4 is ready to help you rule the jobsite and unlock your fullest potential.

Specifications:

• Engine: Kubota D1703M-DI-E4, 24.8 gross HP @ 2200 rpm
• Displacement: 1.647 cc
• Bucket breakout force: 7,924 lbs
• Dipper arm breakout force: 4,451 lbs
• Travel speed (low/high): 1.9/2.9 mph

• Operating weight: 8,129–8,478 lbs, depending on configuration
• Max digging depth: 10.3 ft
• Max reach along ground: 16.9 ft
• Max cutting height: 16.2 ft
• Max loading height: 11.6 ft
• Max vertical wall digging depth: 7.3 ft
• Overall width: 5.6 ft (67 inches)
• Overall height: 8.1 ft
• Ground clearance: 0.95 ft
• Fuel capacity: 10.6 gal
• Hydraulic system fluid capacity: 16.1 gal

• Hydraulic pump capacity: Two variable pumps + 1 gear pump with a combined flow of up to 20.6 gpm
• Auxiliary hydraulic flow: 15.8 gpm
