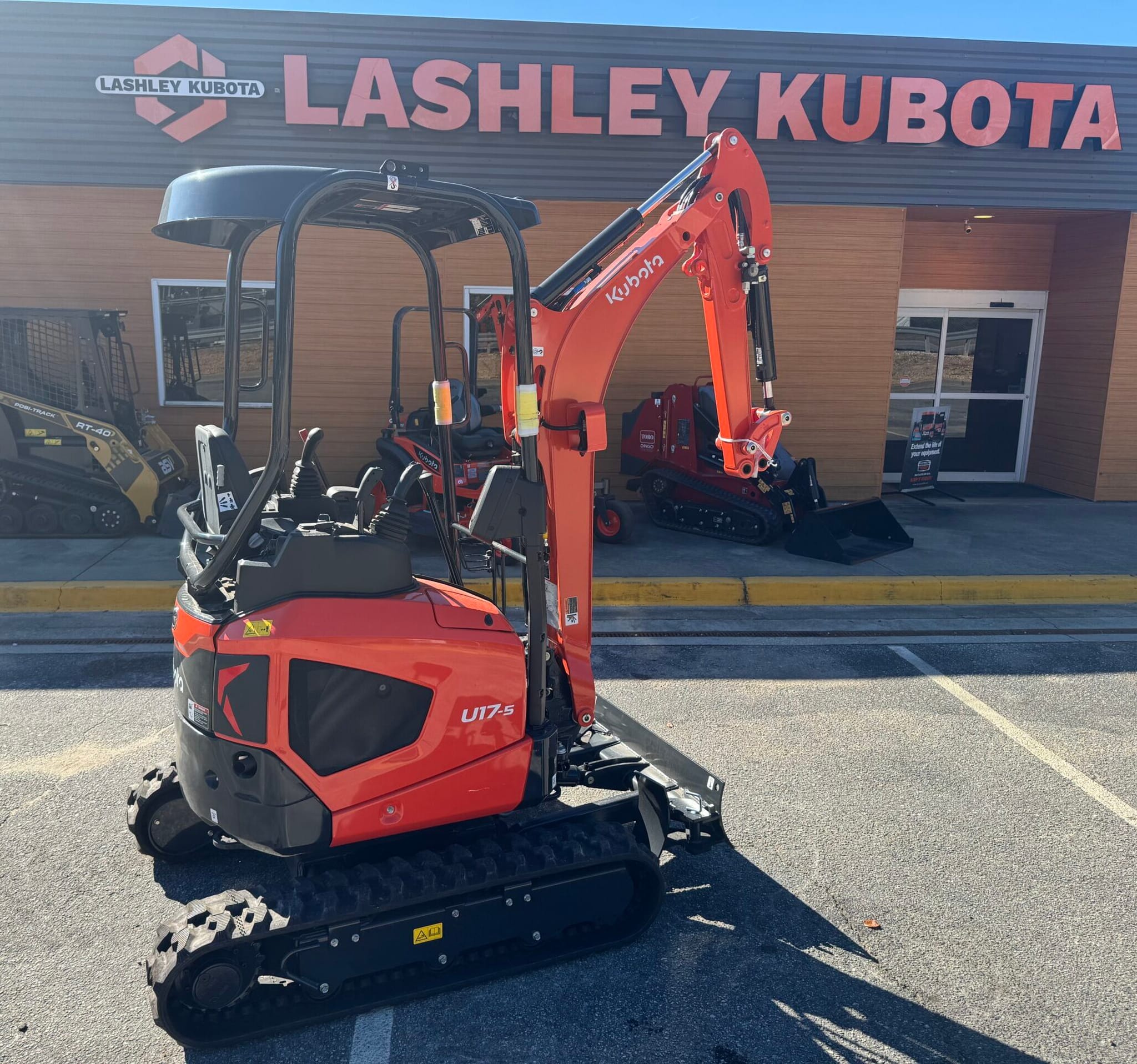

U17-5

**Price listed as Cash Price. Financing Options are available**

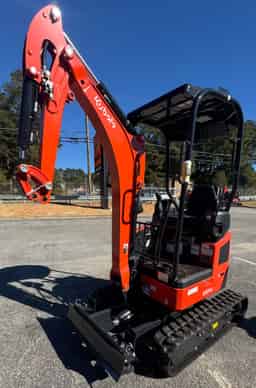

The Kubota U17 mini excavator features a 16.1 HP engine, zero tail swing, and a variable track width that can be adjusted from 39 inches to 51 inches (3′ 3″ to 4′ 1″) for versatility in confined spaces. It has an operating weight of approximately 3,700–3,814 lbs, a max digging depth of 7 ft 7 in, and a max dump height of 8 ft. The machine also includes a two-speed travel system and a Two-Pattern Selection System (TPSS) for switching between ISO and SAE operating patterns.

Specifications:

• Engine: Kubota D902-E4 diesel
• Horsepower: 16.1 HP (gross)
• Bucket breakout force: 3,417–3,420 lbs
• Travel speed: Up to 2.5 mph (low range: 1.4 mph, high range: 2.6 mph)

• Operating weight: Approximately 3,700–3,814 lbs
• Max digging depth: 7 ft 7 in
• Max digging height: 11 ft 7 in
• Max dump height: 8 ft
• Overall height: 7 ft 8 in
• Track width (variable): 39 in–51 in (3 ft 3 in–4 ft 1 in)

• • Zero tail swing: The body does not extend beyond the tracks when swinging, allowing for work in tight spaces.
  • Variable track width: The tracks can be hydraulically widened for stability or narrowed for navigation in tight areas.

• Two-Pattern Selection System (TPSS): A lever allows the operator to switch between ISO and SAE control patterns.

• Two-speed travel: A switch on the dozer lever provides faster dozing and travel speeds.

• Boom swing: The boom can pivot left and right, with a boom swing angle of 65 degrees left and 58 degrees right.

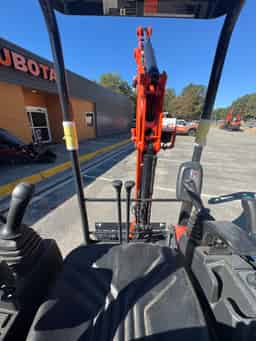

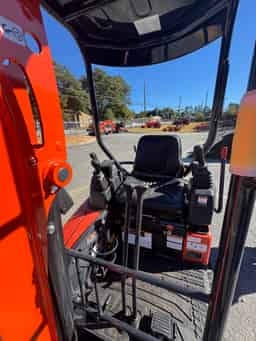

• Comfort: Features include a high-back suspension seat, adjustable wrist rests, and expanded foot room.
