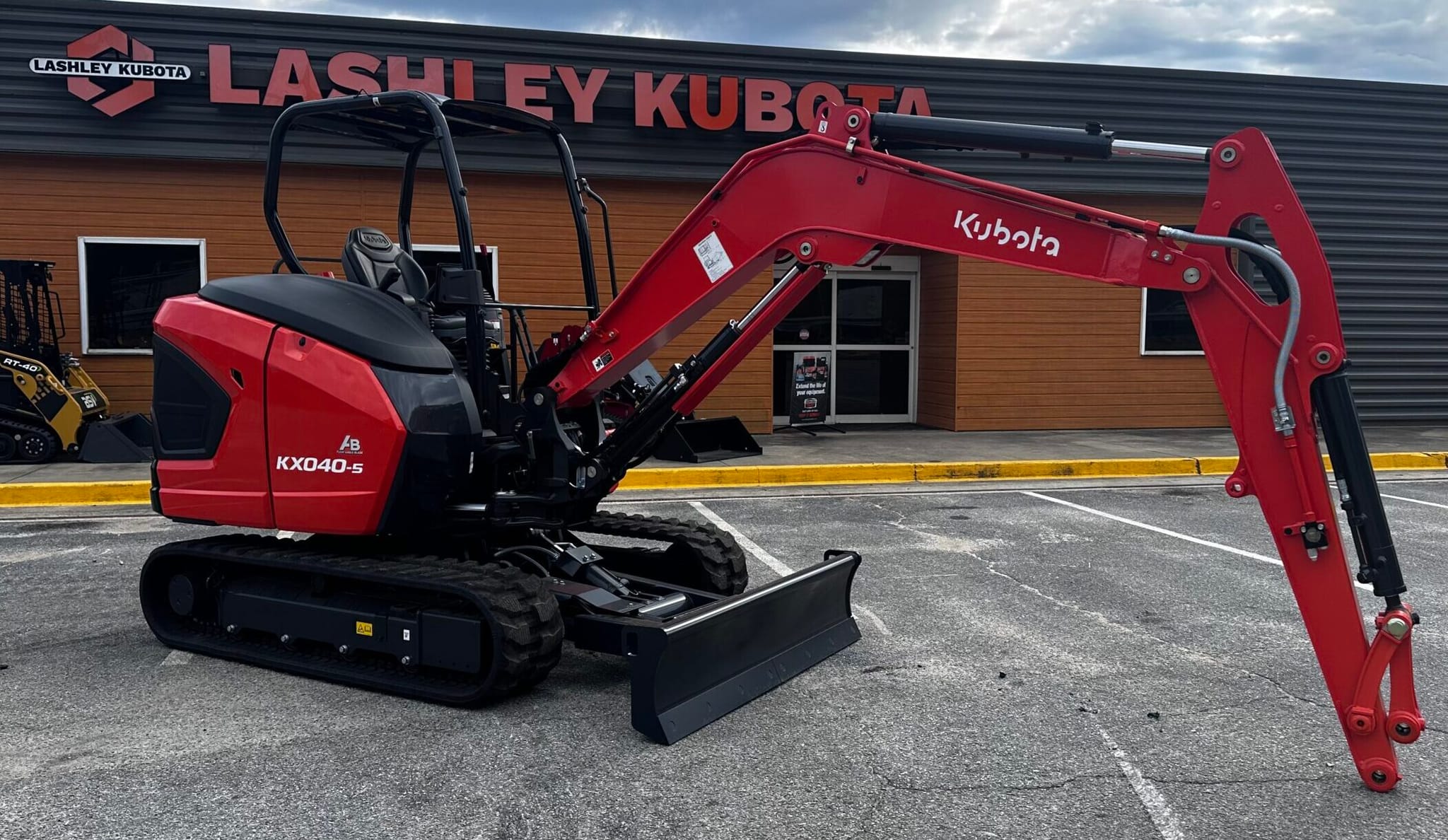

KX040-5R1A
$51,498.00
$69,101.00Save $17,603.00
Price
1
Hours
An excellent fit for contractors who need reliable results on tight job sites without sacrificing performance.
Make:
Kubota
Model:
KX040-5R1A
Horsepower:
40.3
Category:
Compact Excavators, Construction, New
**Price listed as Cash Price. Financing Options are available**
The Kubota KX040-5 is designed to deliver steady power in a size that works for both small and mid-scale jobs. Its balance of reach, control, and maneuverability makes it an excellent fit for contractors who need reliable results on tight job sites without sacrificing performance.
Specifications:
Engine and performance
- Engine: D1803-CR-TE5-BH5 / D1803-CR-TE5-BH6 Kubota Diesel
- Horsepower: 40.3 HP (gross) @ 2200 rpm
- Operating Weight: 9,623 lbs
- Maximum Digging Depth: 11′ 2.7″
- Bucket Breakout Force: 9,535 lbs
- Arm Breakout Force: 4,114 lbs
- Travel Speed:
- Low: 1.8 mph
- High: 3.1 mph
Hydraulic and electrical
- Auxiliary Hydraulics Flow Rate: 17.2 GPM (high) / 9.8 GPM (low)
- Fuel Reservoir: 17.4 gallons
- Hydraulic Oil Reservoir / System: 11.1 gal / 19.6 gal
- Hydraulic Pump Capacity: 17.2 GPM
Dimensions and features
- Overall Width: 5′ 6.9″
- Overall Height: 8′ 1.8″
- Crawler Length: 7′ 1.6″
- Blade: Standard Angle Blade
- Display: 7-inch full-color LCD with a dial control
- Security: Keyless start
- Other features: Standard telematics, auto idle, and auto stop
This video demonstrates the versatility of the Kubota KX040-5:
Similar Products
KX018-4R1
$28,498.00$37,615.00
Digging has never been easier than with the Kubota KX018-4 compact exc...
KX030-4R1
$39,498.00$47,942.00
A comfortable operator station with a large cab, auxiliary hydraulics,...
KX040-5R3A
$57,498.00$76,999.00
Experience elite versatility, maneuverability and power like never bef...
KX080-5R3A
$102,998.00$138,595.00
Get the job done right with a KX080-5. Kubota is the world’s #1 sellin...
U10-5
$23,804.00$30,994.00
In the U10-5 you’ll have access to an adjustable track range and stand...

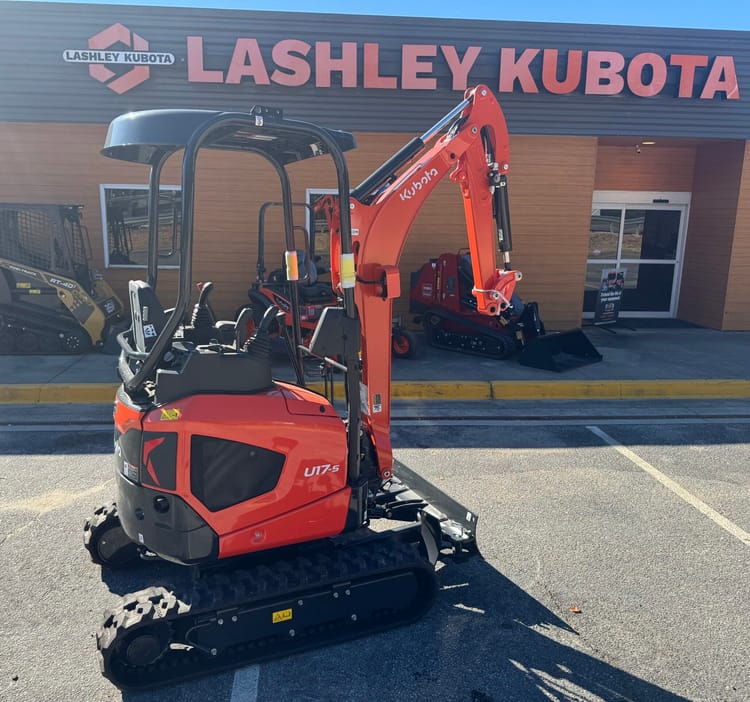

U17-5
