U10-5

**Price listed as Cash Price. Financing Options are available**

**Includes USA Attachments 12″ Pin-On Bucket, Stock #412561**

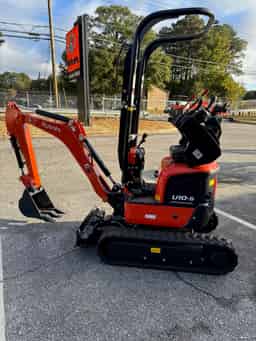

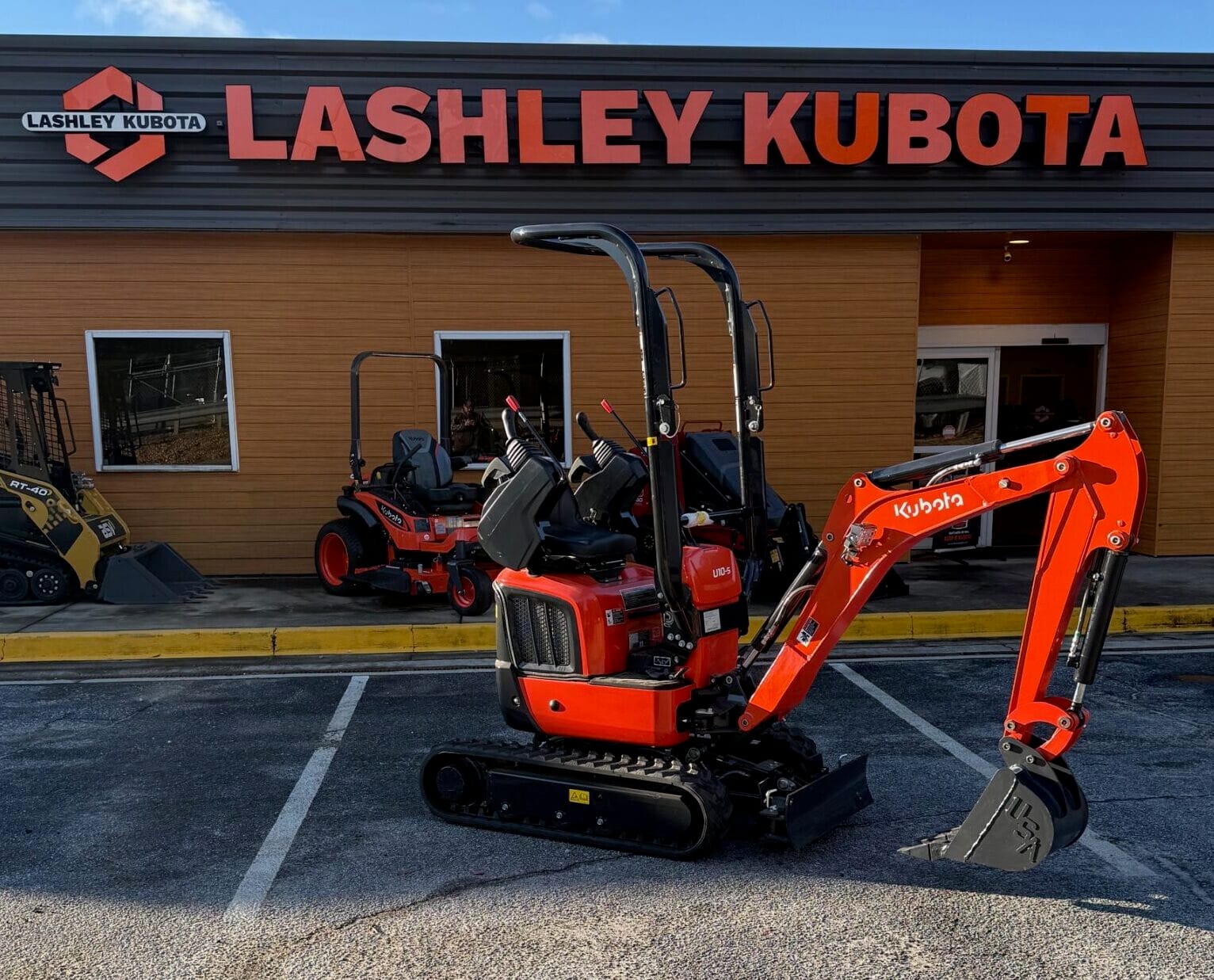

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control.  Kubota is the world’s #1 selling compact excavator for 20 years.

• Engine Model: Kubota D722-E4
• Gross Horsepower: 10.3 hp (7.7 kW)
• Displacement: 43.8 cubic inches (719 cc)
• Operating Weight: 2,646 lbs (1,200 kg)
• Travel Speed: 1.2 mph (low) and 2.5 mph (high)
• Bucket Breakout Force: 2,337 lbs (1,060 kgf)

• Overall Length: 9 ft 9 in (2,980 mm)
• Overall Height: 7 ft 5 in (2,260 mm)
• Overall Width: 3 ft 3 in (990 mm), retractable to 2 ft 6 in (750 mm)
• Blade Width: 3 ft 3 in (990 mm), retractable to 2 ft 6 in (750 mm)
• Blade Height: 7.9 inches (200 mm)
• Crawler Length: 4 ft 5 in (1,340 mm)
• Minimum Ground Clearance: 5.5 inches (140 mm)

• Maximum Digging Depth: 5 ft 11 in (1,800 mm)
• Maximum Digging Height: 10 ft 0 in (3,050 mm)
• Maximum Digging Radius: 11 ft 1 in (3,380 mm)
• Minimum Turning Radius: 510 mm (1 ft 8 in)
