KX030-4R1
$39,498.00
$47,942.00Save $8,444.00
Price
1
Hours
A comfortable operator station with a large cab, auxiliary hydraulics, and an auto-downshift function for improved travel performance.
Make:
Kubota
Model:
KX030-4R1
Horsepower:
24.7
Category:
Compact Excavators, Construction, New
**Price listed as Cash Price. Financing Options are available**

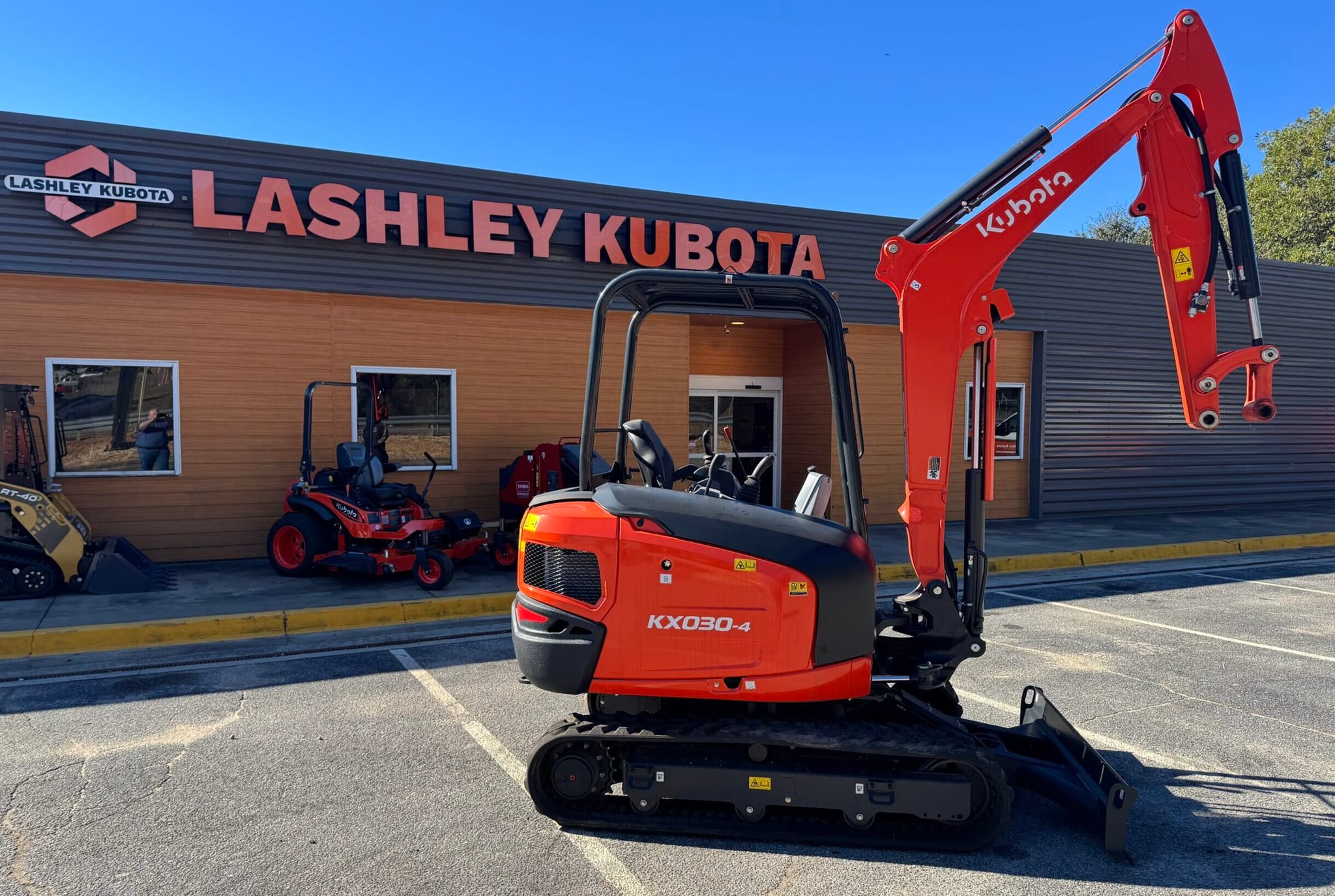

The Kubota KX030-4R1 is a compact excavator with a 24.7 horsepower engine, an operating weight of approximately 6,272 lbs, and a maximum bucket breakout force of 6,924 lbs. Key specifications include a maximum digging depth of 9 ft 7 in, an overall width of 4 ft 11 in, and a traveling speed of up to 2.7 mph. It features a comfortable operator station with a large cab, auxiliary hydraulics, and an auto-downshift function for improved travel performance.
Specifications:
Engine and performance
- Engine Power: 24.7 gross horsepower (or 23.3 HP, depending on source)
- Engine Model: V1505-BH
- Displacement: 91.4 cu. in.
- Bucket Breakout Force: 6,924 lbs
- Arm Breakout Force: 3,484 lbs
- Max Digging Depth: 9 ft 7 in
- Max Reach: 15 ft 1.1 in
Travel and dimensions
- Operating Weight: 6,272 lbs (cab/canopy model)
- Overall Width: 4 ft 11 in
- Overall Height: 7 ft 11 in
- Ground Clearance: 11.6 in
- Traveling Speed: 1.7 mph (low) / 2.7 mph (high)
Hydraulics
- Auxiliary Hydraulics Flow Rate: 13.1 GPM
- Hydraulic Pump Capacity: 8.3 GPM (Piston x 2) / 4.7 GPM (Gear x 1)
- Hydraulic Oil Reservoir: 9.0 gal (system capacity 13.7 gal)
Features
- Operator Station: Large cab/enclosed ROPS, flat floor space, and a suspension seat
- Travel: Auto-downshift function for higher speed with automatic downshifting when resistance is encountered
- Blade: Dozer blade with a float function
- Auxiliary Hydraulics: Proportional control with a diverter valve for easy attachment switching
- Coupler: Standard mechanical quick coupler with auxiliary hydraulics and a hydraulic thumb
